DUT: B2B Connector
RF signal Pitch:>0 .3mm
Band width: > - 1 dB@ 8 . 5 GHz B2B Probe Type: Pogo pin
Cable Connector: 2 .92-Male/1 .85-Female
Temperature range: -40° C ~125° C

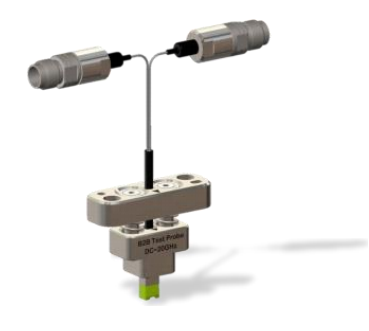

DUT: B2B Connector RF signal Pitch:>0 .7mm
Band width:> -2dB@20GHz
B2B Probe Type: Coaxial Pogo pin
Cable Connector: 2 .92-Male/1 .85-Female
Temperature range: -40° C ~125° C

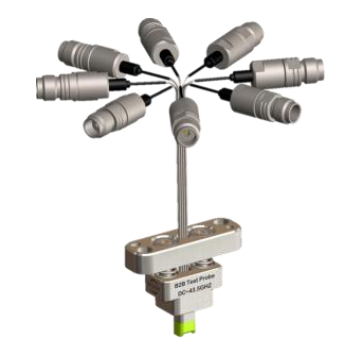

DUT: B2B Connector RF signal Pitch:>0 .7mm
Band width: > - 3 dB@ 4 3 . 5 GHz
B2B Probe Type: Coaxial Pogo pin
Cable Connector: 1 .85-Female
Temperature range: -40° C ~125° C

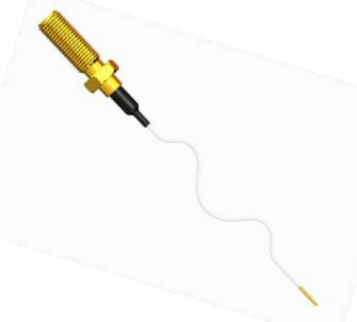

DUT: mmWave Antenna , IC, B2B ,etc
Coaxial Pogo pin diameter : φ0 .7mm Band width:> -2dB@20GHz(L:120mm)
Probe Type: Coaxial Pogo pin Cable Type: φ0 .5mm, Flexible cable
Cable Connector: SMA-Male/2 .92-Female
Temperature range: -40° C ~125° C

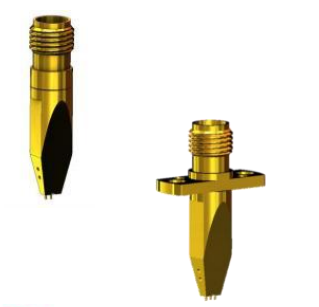

DUT: PCB , IC, Antenna ,et
Signal&GND Pitch: 0 .8~2 .5mm, Support customization
Insertion Loss :> -0 .5dB@20GHz Return Loss:>10dB@20GHz
Connector1 Type: 2 .92-Female Connector2 Type: Pogo pin
Temperature range: -40° C ~155° C

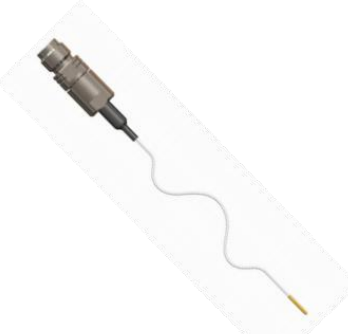

DUT: mmWave Antenna , IC, B2B ,etc
Coaxial Pogo pin diameter : φ0 .7mm
Band width:> -3dB@43 .5GHz(L:120mm) Probe Type: Coaxial Pogo pin
Cable Type: φ0 .5mm, Flexible cable Cable Connector: 1 .85-Female
Temperature range: -40° C ~125° C
