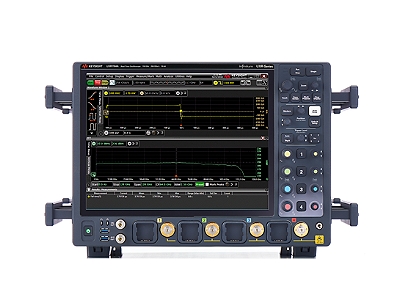

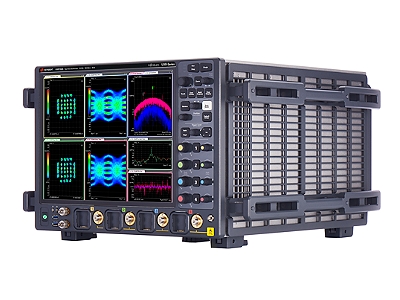

Infiniium UXR 系列实时示波器
  • 概 要
  • 规格表
  • 选附件
  • 产品资料

Infiniium UXR 系列实时示波器

突破以前极限,完成更棘手任务
  • 提供 13 至 110 GHz 实时带宽,实现下一代的技术突破
  • 提供 10 位 ADC 和优异的 ENOB 性能,支持更高的调制标准
  • 本底噪声超低,使您可以观察信号的真实特征
  • 在一个仪器中提供 4 个全带宽通道,降低双偏振相干调制的计时误差
  • 业内超级精确的实时示波器



超高性能,可以提供更高的可视性、更高的精度以及更快的测试速度

  • 13 至 110 GHz 实时示波器带宽
  • 高分辨率 10 位模拟数字转换器(ADC)
  • 带宽和通道数可以全面升级
  • 带宽高达 110 GHz,ENOB 非常出色
  • 超低本底噪声,噪声小于 1 mVrms
  • 超低抖动,固有抖动小于 25 fs(rms),通道间抖动小于 10 fs(rms)


配置表:

Model Number Maximum Bandwidth Input Connector Maximum Sample Rate Memory Depth per Channel
4 Channel 2 Channel Standard Maximum
UXR1104A UXR1102A 110 GHz 1 mm 256 GSa/s 200 Mpts 2 Gpts
UXR1004A UXR1002A 100 GHz 1 mm
UXR0804A UXR0802A 80 GHz 1 mm
UXR0704A UXR0702A 70 GHz 1.85 mm
UXR0594AP UXR0592AP 59 GHz 1 mm
UXR0594A UXR0592A 59 GHz 1.85 mm
UXR0504A UXR0502A 50 GHz 1.85 mm
UXR0404A UXR0402A 40 GHz 1.85 mm
UXR0334A N/A 33 GHz 3.5 mm 128 GSa/s
UXR0254A N/A 25 GHz 3.5 mm
UXR0204A N/A 20 GHz 3.5 mm
UXR0164A N/A 16 GHz 3.5 mm
UXR0134A N/A 13 GHz 3.5 mm

InfiniiMax probe amps Probe or accessory Bandwidth
30-GHz InfiniiMax III probe amplifier N2803A 30 GHz
25-GHz InfiniiMax III probe amplifier N2802A 25 GHz
20-GHz InfiniiMax III probe amplifier N2801A 20 GHz
16-GHz InfiniiMax III probe amplifier N2800A 16 GHz
20-GHz InfiniiMax III+ probe amplifier N7003A 20 GHz
16-GHz InfiniiMax III+ probe amplifier N7002A 16 GHz
13-GHz InfiniiMax III+ probe amplifier N7001A 13 GHz
12-GHz InfiniiMax II probe amplifier (RC) 1169B 12 GHz
8-GHz InfiniiMax III+ probe amplifier N7000A 8 GHz
InfiniiMax probe heads and tips
Browser (handheld) probe head N5445A 30 GHz
Browser tip replacement N5476A 30 GHz
3.5/2.92/SMA probe head N5444A 28 GHz
ZIF probe head N5439A 28 GHz
PC board ZIF tips (set of five) N2838A 25 GHz
450-ohm ZIF tip kit (set of five) N5440A 28 GHz
200-ohm ZIF tip kit (set of five) N5447A 28 GHz
Solder-in probe head N2836A 26 GHz
Micro probe head (set of five) (compatible with 1169B) MX0100A 12 GHz
InfiniiMax accessories
Performance verification fixture N5443A 30 GHz
Precision BNC adaptor N5442A 13 GHz
Sampling scope adaptor N5477A 30 GHz
2.92-mm phase-matched cable pair (1m) N2823A 40 GHz
2.92-mm phase-matched cable pair (25cm) N5448B 40 GHz
2.92-mm flexible cable N5448B 30 GHz
35 GHz flexible cable N2812B 35 GHz
High-impedance probe adaptor N5449A 500 MHz
Other recommended probes and accessories
Optical-to-electrical converter N7004A 33 GHz
Active termination adapter N7010A 30 GHz
Power rail probe N7024A 6 GHz
AutoProbe II to AutoProbe III interface adapter N2852A 40 GHz
3D probe positioner N2787A Not Applicable

应用软件:

Description License Type
Fixed Floating Server Based
BroadR-Reach N6467A-1FP N6467A-1TP N5435A-062
Compliance Application Switch Matrix N8890A-1FP N8890A-1TP N5435A-124
DDR1 and LPDDR1 U7233A-1FP U7233A-1TP N5435A-021
DDR2 and LPDDR2 Compliance Test Application N5413B-1FP N5413B-1TP N5435A-037
DDR2 and LPDDR2 Debug Tool N5413B-3FP N5413B-3TP N5435A-136
DDR3 and LPDDR3 Compliance Test Application U7231B-1FP U7231B-1TP N5435A-053
DDR3 and LPDDR3 Debug Tool U7231B-3FP U7231B-3TP N5435A-137
DDR4 and LPDDR4 Compliance Test Application N6462A-1FP N6462A-1TP N5435A-087
DDR4 and LPDDR4 Data Analytics Web Service N6462A-5FP N6462A-5TP N5435A-108
DDR4 Debug Tool N6462A-3FP N6462A-3TP N5435A-138
LPDDR4 Debug Tool N6462A-4FP N6462A-4TP
DisplayPort 1.4 U7232E-1FP U7232E-1TP N5435A-041
eDP 1.4 N6469A-1FP N6469A-1TP N5435A-083
eMMC N6465A-1FP N6465A-1TP N5435A-061
IEEE802.3bs/cd Compliance Application N6472A-1FP N6472A-1TP N5435A-130
Ethernet + EEE 10/100/1000BASE-T N5392B-1FP N5392B-1TP N5435A-060
Ethernet 10GBASE-T U7236A-1FP U7236A-1TP N5435A-023
Ethernet nBASE-T 2.5G Compliance Software U7236A-6FP U7236A-6TP N5435A-098
Ethernet nBASE-T 5G Compliance Software U7236A-5FP U7236A-5TP N5435A-097
Ethernet MGBASE-T 2.5G Compliance Software U7236A-4FP U7236A-4TP N5435A-100
Ethernet MGBASE-T 5G Compliance Software U7236A-3FP U7236A-3TP N5435A-099
Ethernet 10GBASE-KR N8814B-1FP N8814B-1TP N5435A-059
Ethernet 100GBASE-CR10 N8828A-1FP N8828A-1TP N5435A-078
Ethernet 100GBASE-CR4 N8830A-1FP N8830A-1TP N5435A-080
Ethernet 100GBASE-KR4 N8829A-1FP N8829A-1TP N5435A-079
Ethernet CAUI-4 Compliance Application N8841A-1FP N8841A-1TP N5435A-102
GDDR5 Compliance Test Application U7245A-1FP U7245A-1TP N5435A-139
HDMI 1.4 N5399C-3FP N5399C-3TP
HDMI 2.0 N5399C-1FP N5399C-1TP N5435A-070
MHL 3.0 N6460B-1FP N6460B-1TP N5435A-078
MIPI C-PHY U7250A-1FP U7250A-1TP N5435A-089
MIPI D-PHY U7238C-1FP U7238C-1TP N5435A-022
MIPI M-PHY U7249C-1FP U7249C-1TP N5435A-043
MOST N6466A-1FP N6466A-1TP N5435A-068
OIF-CEI 4.0 Compliance Application N6473A-1FP N6473A-1TP N5435A-131
ONFI Compliance Test N6474A-1FP N6474A-3FP N5435A-132
PCIe 3.x (2.5G, 5G, 8G) Compliance Application N5393F-3FP N5393F-3TP N5435A-113
PCIe 4.0 (2.5G, 5G, 8G, 16G) Compliance Application N5393F-1FP N5393F-1TP N5435A-112
SAS-3 N5412E-3FP N5412E-3TP N5435A-073
SAS-4 N5412E-1FP N5412E-1TP N5435A-111
SATA 6Gb/s compliance application N5411B-1FP N5411B-1TP N5435A-028
SFP+ N6468A-1FP N6468A-1TP N5435A-074
Thunderbolt 3 N6470B-1FP N6470B-1TP N5435A-120
USB 2.0 N5416A-1FP N5416A-1TP N5435A-017
USB 3.1: 5 Gbps only Transmitter Compliance U7243C-3FP U7243C-3TP N5435A-030
USB 3.1: 5 Gbps and 10 Gbps Transmitter Compliance U7243C-1FP U7243C-1TP N5435A-118
UHS-I U7246A-1FP U7246A-1TP
UHS-II N6461A-1FP N6461A-1TP N5435A-052
User-defined application N5467B-1FP N5467B-1TP N5435A-058
User-defined function and MATLAB Bundle N8806A-1FP N8806A-1FP
XAUI N5431A-1FP N5431A-1TP N5435A-018
